Cabrinha Prestige 905 Union Hydrofoil Complete
Cabrinha Prestige 905 Union Hydrofoil Complete
Couldn't load pickup availability
Cabrinha Prestige 905 Union Hydrofoil with 180 rear stabilizer, 78cm mast, and all hardware.
High Aspect Ratio Wings
Ultra efficient high aspect ratio wings to maximize lift and lower the drag.
Moderate Anhedral
The moderate anhedral design allows for an easy turn initiation giving this wing an incredibly agile feeling combined with the confidence to get playful through turns.
Optimized Wingtip Shape
Optimized wingtip shape for effortless wingtip breaching.
Ultra Lean Profile
The ultra lean profiles of the prestige allows incredible top speeds while remaining ultra stable and quiet.
Union Connection
Maximized fuselage footprint connection for flexural rigidity and hydro dynamic efficiency. The fluid, integrated design offers a clean, modern aesthetic while improving overall efficiency.
Optimized Aerofoil
The medium camber design balances early takeoff and stable ride at all speeds.
Tech Specs
| SIZE: | 760 | 905 | 1150 |
|---|---|---|---|
| WING SPAN (MM) | 970 | 1000 | 1120 |
| ASPECT RATIO | 12.38 | 11 | 10.9 |
| AREA (cm²) | 760 | 905 | 1150 |
| CHORD (MM) | 108 | 120 | 143 |
3 Screw Connection
Super simple 3 screw connection design lowers assembly time and improves hydro efficiency.
Construction
The highest quality prepreg high modulus carbon construction not only creates a visual masterpiece but provides the ultimate balanced between stiffness and strength.
15% Reduction
An all new fuselage design not only reduces the projected area by 15% compared to the previous Fusion system, it also greatly increased efficiency and performance.
Integrated Inserts
Integrated ss316 threaded insert for ultra stiff fuselage connection
Ultra Lean Profile
The Prestige's ultra lean profiles allow incredible top speeds while remaining ultra stable and quiet.
3D View

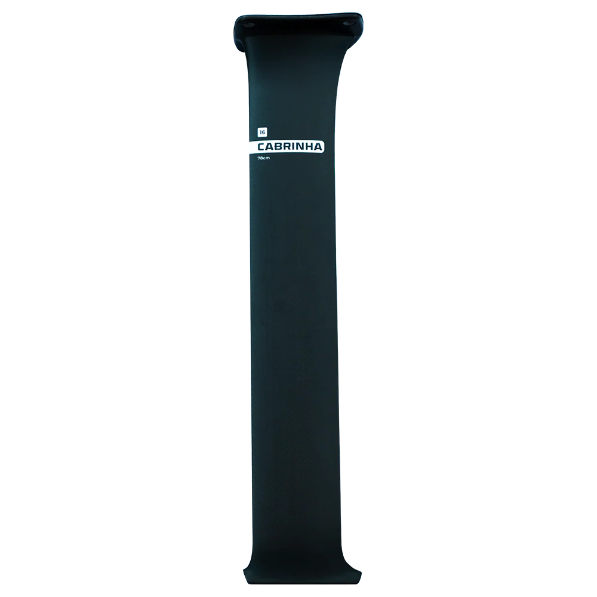

MAST:
The UNION mast is a high modulus carbon mast offering incredible stiffness with low drag 16mm thick profile. It also offers incredible advances when deflection tested against previous generations.
The new UNION connection reduces the fuselage cross sectional area by 15%. This new outline is far more streamlined and efficient.
The mast is available in 2 sizes, each size is tailored for a specific riding style:
- 78cm for prone and downwind purists
- 16mm High-modulus carbon layup for exceptional stiffness and direct feedback
- Monobloc construction reduces drag and improves energy transfer for better glide and higher top speed
- Unidirectional pre-preg carbon maximizes stiffness while keeping weight down
- Thin, aerodynamic profile cuts drag for easier early lift longer glide and higher top end
- UNION connection for maximum stiffness and low drag
Includes: Cover, 4pcs m8x30mm screw with 4 pcs Tnut board mounting hardware, 2 pcs m8x45mm, 1pcs m8x25mm, T40 Torx Torque tool.

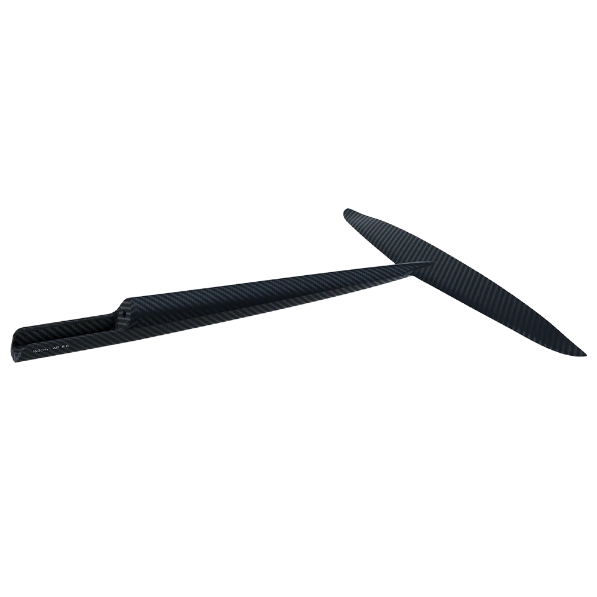

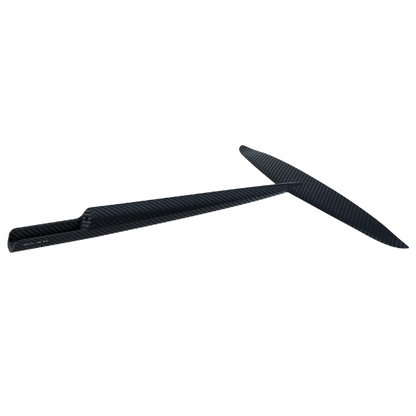

STAB:
The Union stabilizer is our most efficient low drag stabilizer that is available in 3 sizes, 160, 180 & 200. All with an aspect ratio in the region of 8.5 they allow the perfect balance of stability and response to help maximize the performance of the Union system.
The 160 offers a more loose & playful feeling. The 180 is the most versatile all-round option while the 200 offers maximum stability.
*Set Includes: Cover, 1pcs m8x20mm
Single monocoque component for minimal drag
- Full prepreg carbon construction
- Optimal efficiency and maneuverability
